70W PIR LED Flood Light |
|
|
产品说明： |
|
| Model: LW-FL-W70-WPIR |
|
|
|
|
|
|
|
|
|
|
|
|
| Parameter： |
|
|
|
|
| ● Power: |
70W |
|
|
|
| ● Chip brand: |
Bridgelux/Epistar |
|
|
|
| ● Voltage: |
100-240V AC |
|
|
|
| ● Driver: |
Meanwell |
|
|
|
| ● Power Factor: |
>0.97 |
|
|
|
| ● IP Grade: |
IP65 |
|
|
|
| ● Beam Angel: |
120degrees |
|
|
|
|
|
|
|
|
|
|
| Specialty： |
|
| ● Using high power integrating LED as light source, the lamp’s luminous efficiency can reach 70~80LM/W, and CRI>70Ra, with good heat dissipation and low light attenuation. |
|
|
| ● Accommodate to wide input voltage from 100V~240VAC, constant voltage & current output, it can start up at once with no flickering, lightning protection and PFC function available. |
|
|
| ● It comes with PIR switch, the induction time and sensor type can be set freely, meet up with certain lighting needs. |
|
|
| ● Accommodate to wide input voltage from 100V~240VAC, constant voltage & current output, it can start up at once with no flickering, lightning protection and PFC function available. |
|
|
|
| Shape Structure: |
|
| ● Shell Material: Aluminum |
|
| ● Shell Color: hoar/ Black |
|

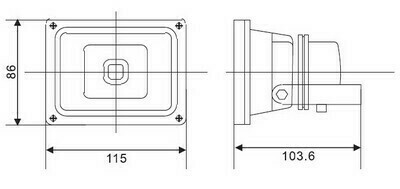

| ● Size |
|
|
|
|
|
|
|
|
 |
|
|
|
| Attentions： |
|
| ● After installation, the inductive probe knob must not put upward, and there is leaking hole upon every sensor, which can avoid the influent waterlogging. |
|
|
| ● Only professional electrician can install the lamp, please check the lamp very carefully before installation. |
|
|
| ● Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed. |
|
|
|
|
红外感应 LED 泛光灯
